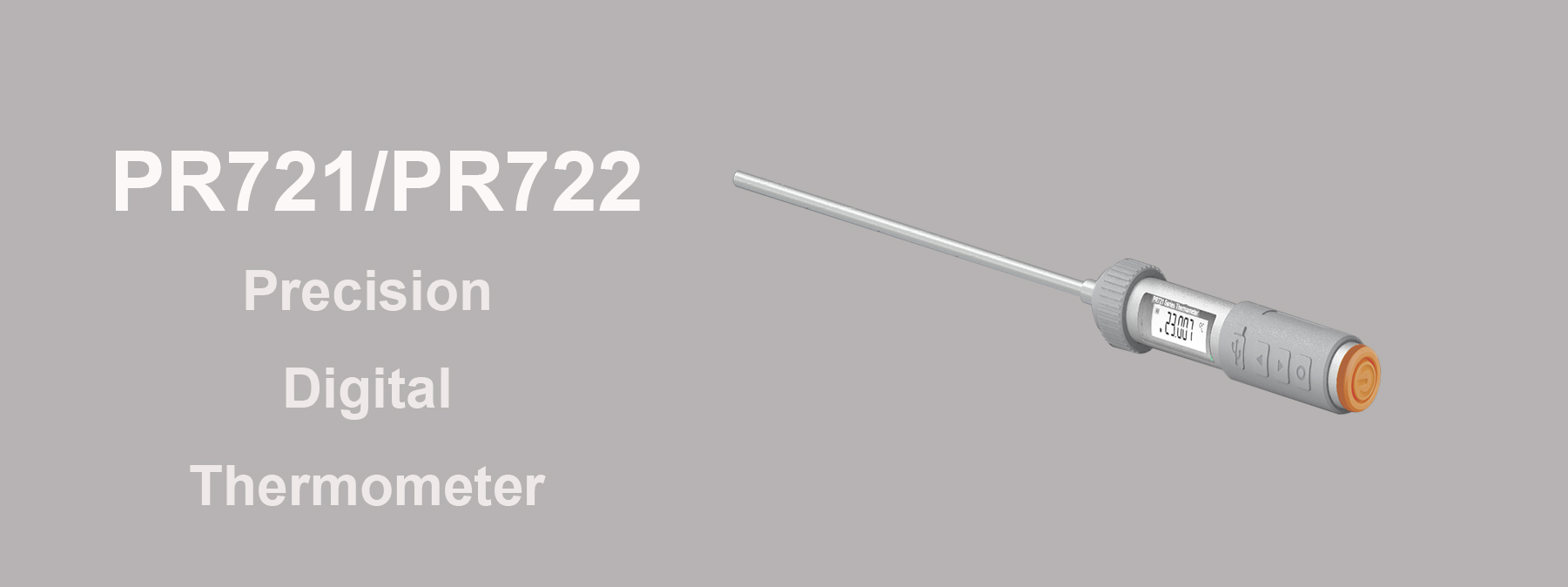

Professional China Portable Digital Thermometer - PR721/PR722 Series Precision Digital Thermometer – Panran Detail:
PR721 series precision digital thermometer adopts intelligent sensor with locking structure, which can be replaced with sensors of different specifications to meet different temperature measurement needs. The supported sensor types include wire-wound platinum resistance, thin-film platinum resistance, thermocouple and humidity sensors, which can automatically identify and load the type, temperature range and correction value of the connected sensor. The thermometer is made of aluminum alloy as a whole, with IP64 protection class, which can be used reliably in harsh environments.
Technical Features
- Smart sensor, the temperature range covers -200~1300℃. Using high temperature-resistant locking components, the host can automatically load the current sensor type, temperature range and correction value after connecting to the smart sensor, improving the accuracy of temperature traceability, and work efficiency.
- Low temperature drift, in the range of 5~50℃, the electrical measurement accuracy is better than 0.01, and the resolution is 0.001℃, which can meet the high standard temperature calibration requirements.
- In U disk mode, charging or data transmission can be performed through the Micro USB interface, which is convenient for quick editing of test data.
- Gravity sensing function, supports automatic screen flipping, and ideal reading experience can be obtained by placing it left or right.
- Support Bluetooth or ZigBee communication, you can use Panran Smart Measurement APP to synchronize data or expand other applications.
- Protection class IP64 for reliable use in harsh environments。
- Ultra-low power consumption, built-in rechargeable lithium battery, continuous work for more than 130 hours.
Other Functions
Volatility measurement at set time intervalsRelative temperature measurementMaximum, minimum and average value calculationElectrical value/temperature value conversionSensor correction value editingOver temperature alarmBuilt-in high precision real time clockOptional ℃, ℉, KGeneral Parameters
Electrical Accuracy (One Year Calibration Period)Model | PR721A PR722A | PR721B PR722B | Remark |
External dimensions | φ29mm×145mm | Sensor not included | |
Weight | 80g | Weight with battery | |
Data storage capacity | 8MB(Store 320,000 sets of data) | Contains time information | |
External interface | Micro USB | Charging/data | |
Battery specifications | 3.7V 650mAh | Rechargeable lithium battery | |
Charging time | 1.5hours | DC5V 2Acharging | |
Battery duration | ≥80hours | ≥120hours | |
Wireless communication | Bluetooth (effective distance ≥ 10m) | ZigBee(effective distance ≥50m) | in the same space |
Electrical Accuracy (One Year Calibration Period)
Measuring range | PR721Series | PR722Series | Remark |
0.0000~400.0000Ω | 0.01%RD+5mΩ | 0.004%RD+3mΩ | 1mAExcitation current |
0.000~20.000mV | 0.01%RD+3μV | Input impedance≥100MΩ | |
0.000~50.000mV | 0.01%RD+5μV | ||
0.00000~1.00000V | 0.01%RD+20μV | ||
Temperature Coefficient | Resistance:5ppm/℃Voltage:10ppm/℃ | Resistance:2ppm/℃Voltage:5ppm/℃ | 5℃~50℃ |
Temperature Accuracy (Converted from Electrical Accuracy)
Sensor type | PR721Series | PR722Series | Resolution |
Pt100 | ±0.04℃@0℃±0.05℃@100℃±0.07℃@300℃ | ±0.02℃@0℃±0.02℃@100℃±0.03℃@300℃ | 0.001℃ |
Type S thermocouple | ±0.5℃@300℃±0.4℃@600℃±0.5℃@1000℃ | 0.01℃ | |
Type Nthermocouple | ±0.2℃@300℃±0.3℃@600℃±0.3℃@1000℃ | 0.01℃ | |
Reference junction compensation | ±0.15℃@RT±0.20℃@RT±20℃ | 0.01℃ |
Product detail pictures:
